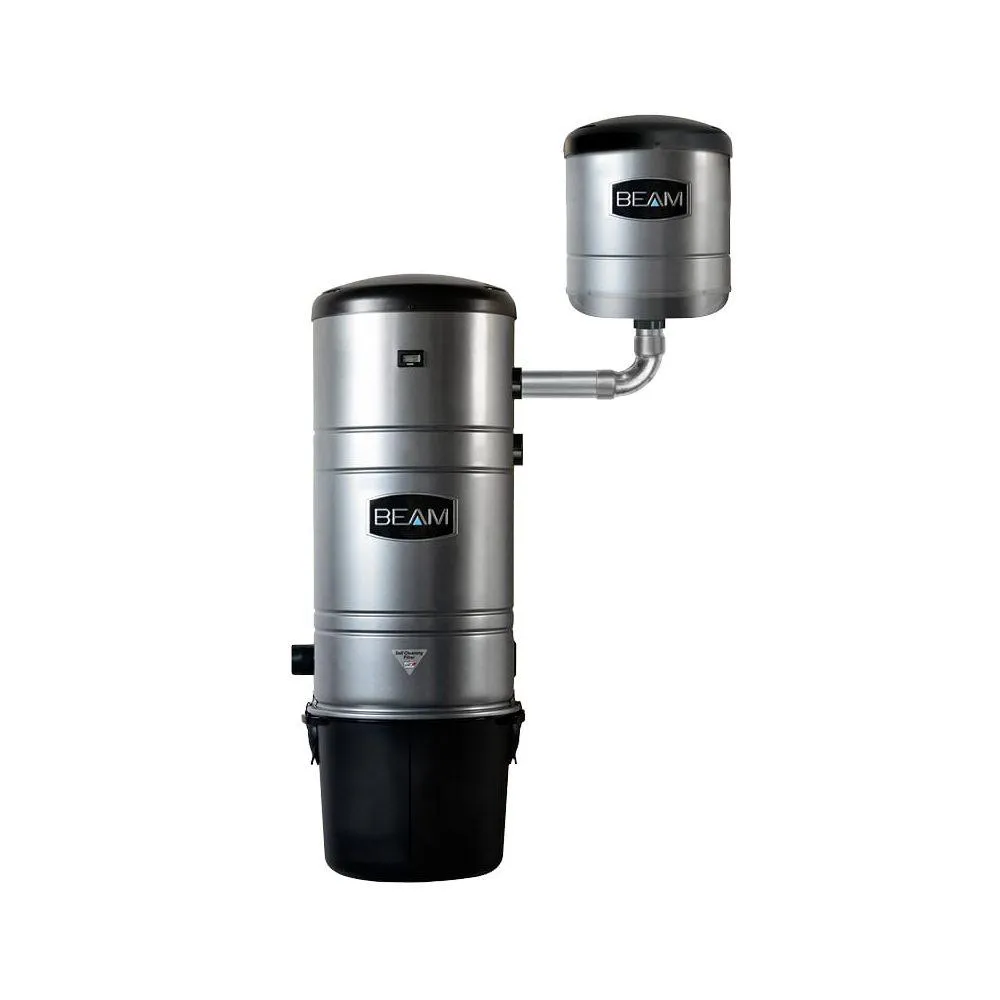

Equipped with two separate motors that can be connected in series or parallel as needed, this central vacuum delivers outstanding performance. It is perfectly suited for cleaning large areas, especially when used with a long hose and in installations with an extensive duct network and multiple inlets, whether traditional or Retraflex®.
This model cannot be installed in an enclosed space. For specific installation details, please refer to the user manual.
Recommendations:
Other information:
| Model | ||
|---|---|---|
| Voltage | 240 V |
|
| Air Flow | 232.3 CMH 136.7 CFM |
464.5 CMH 273.4 CFM |
| AirWatts | 1354 AW |
|
| Maximum Amps | 14.6 A |
|
| Waterlift (mm) | 6452 mm |
3790 mm |
| Motor | 2+2 turbines // 2 motors // 168 mm |
|
| Sound Level | 72 dB |
70 dB |
| Size (H) | 42.1" | 107 cm |
16.9" | 43 cm |
| Diameter | 14.1" | 35.8 cm |
11.9" | 30.2 cm |
| Weight | 1:37 lb | 16.8 kg |
2:22 lb | 10 kg |
